Electrical CAD Conversion
Our Electrical CAD Conversion services transform PDFs, scanned images, and hand sketches into accurate AutoCAD 2D drawings. We update field as-built changes and convert existing drawings to customer-specific standards, ensuring improved clarity, consistent formatting, editable documentation, and reliable engineering records for electrical design and project requirements.
- PDF to AutoCAD 2D drawings
- Scanned Images to AutoCAD 2D drawings
- Hand Sketch to AutoCAD 2D drawings
- Field As built changes update to AutoCAD drawings
- Conversion to customer standard drawings
Electrical CAD Conversion

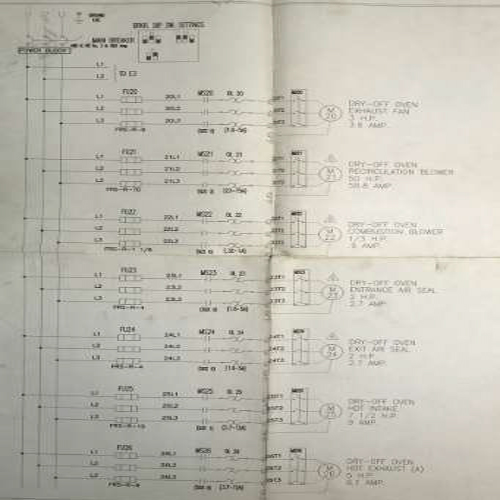

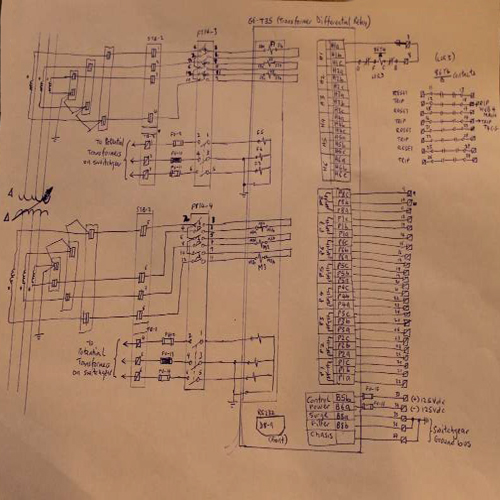

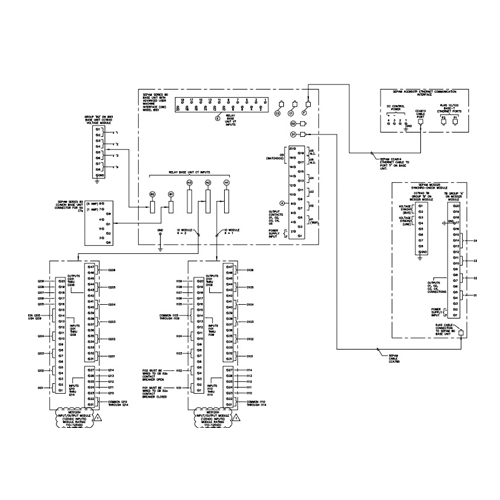

Input

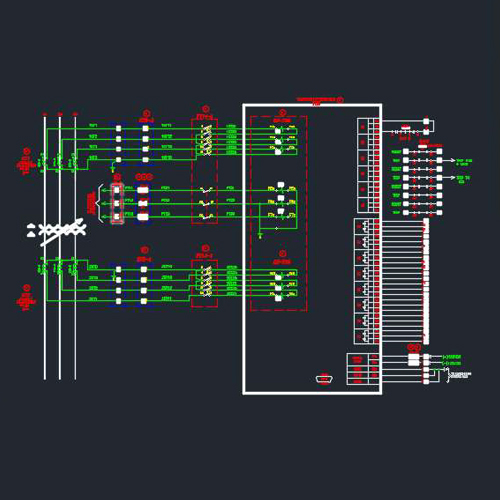

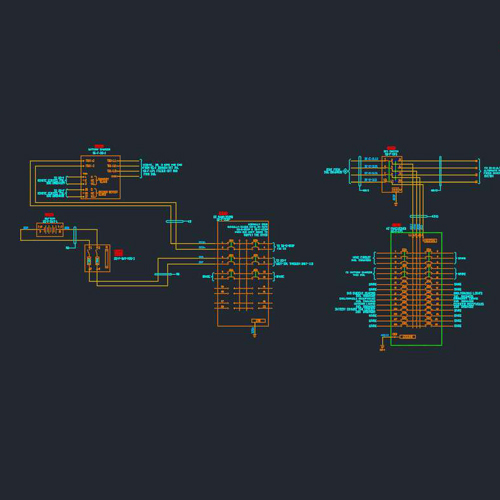

Output
